ZVB self-cleaning

Pellet

Water

16 | 20 | 24 | 28 | 34 kW

Up to 94 %

ZVB self-cleaning

KW: 16 | 20 | 24 | 28 | 34

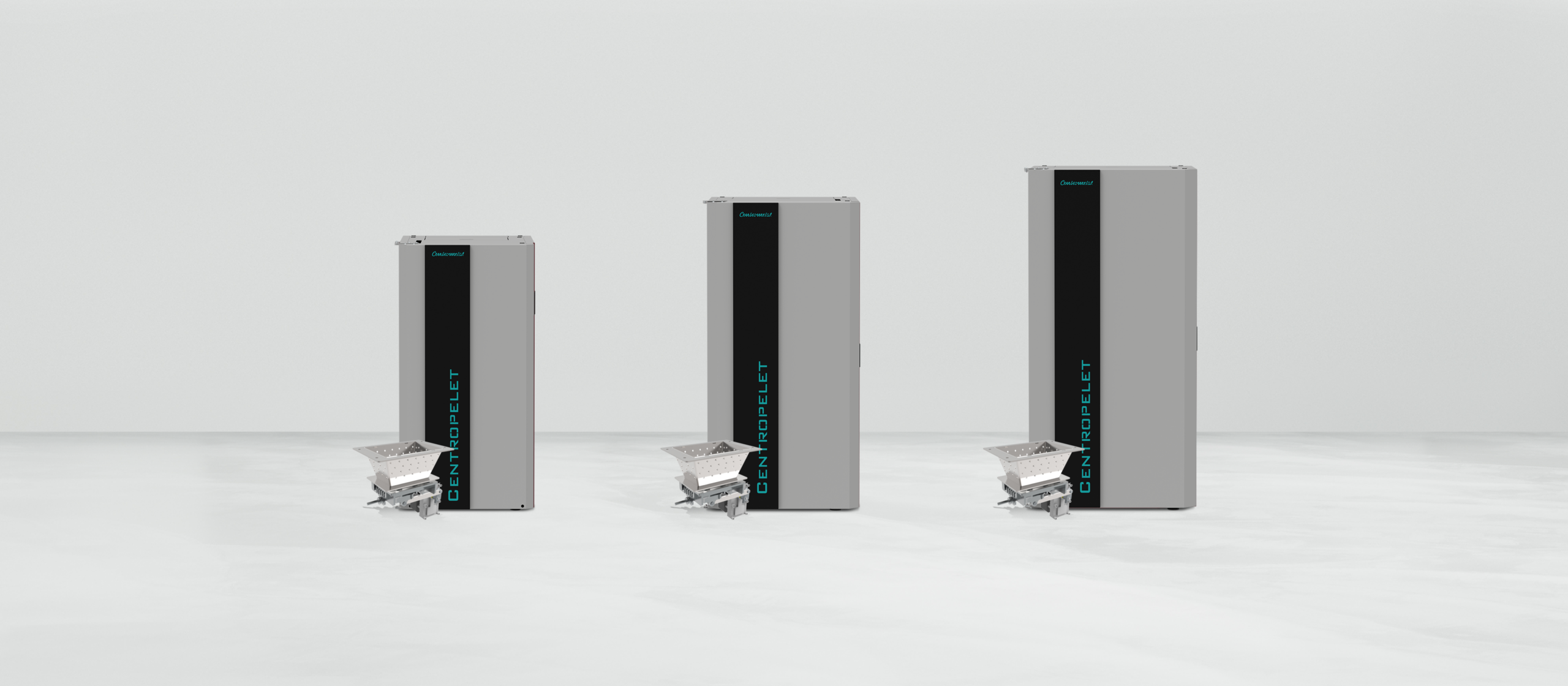

The compact pellet boiler can be easily placed in a technical room or in a service space due to its small size. Just like traditional boilers, the display is simple and intuitive for all phases of automatic operation. It has programmable electronics that can also be set remotely for daily switching on and off. Designed to give maximum efficiency and autonomy has a pellet tank up to 130 L with 59 working hours.

The self-cleaning brazier always guarantees perfect brazier cleanliness, ensuring the passage of primary and secondary air necessary for combustion during ignition and normal boiler operation.

Self-cleaning brazier

The self-cleaning brazier always ensures a perfect cleaning of the latter, ensuring the primary and secondary air passage necessary for combustion. Both during ignition and during normal operation of the thermostove.
The mobile grate cleans the bottom of the brazier without turning off the stove, thus avoiding new ignitions. In this way the user must periodically clean the combustion chamber and it will not be necessary to manually clean the brazier before new ignitions, as happens with stoves with standard braziers.

  1. V-Power, patented flame-saving system
  2. Stainless steel brazier
  3. Mobile grate for automatic cleaning
  4. Gear motor

OPTIONAL

Pneumatic pellet system

Automatic pneumatic system of pellet feed, pipe (standard 20m) and external remotable hopper with a capacity of 1800 liters (1130 kg) of fuel. 3 different external tanks of 450 Kg / 790 Kg / 1.130 Kg for all models of compact boilers.

PLUS

Optional
Display LCD
Ceramic resistance
Modulating pump
Self-cleaning brazier
Anti-explosion device
